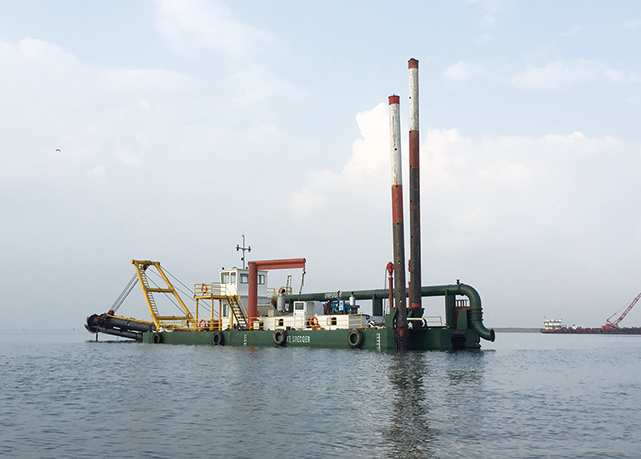

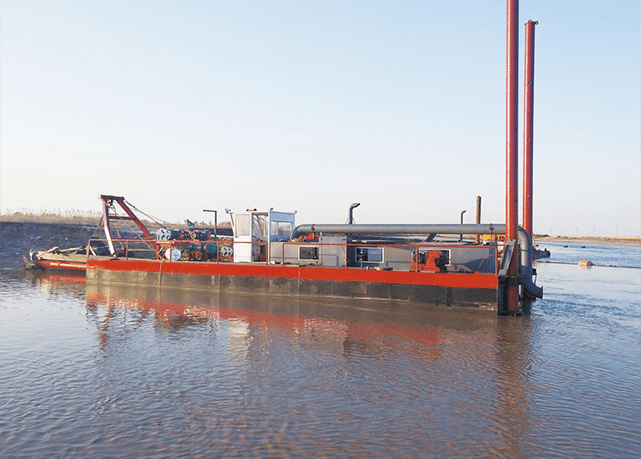

1000m3/h Cutter Suction Dredger
Dredge Boat for Sale
Advantages of our dredgers
The dredger transports the silt material to the designated accumulation site, ensuring efficient and effective sediment removal.
- Main hull material: Steel and Steel Aluminum Ship
- The 1000m3/h Cutter Suction Dredger is equipped with a rotary cutter device installed at the front end of the suction pipe.
- This device effectively cuts and agitates the sediment at the river bottom.
- The loosened material is then suctioned through the mud pipe using a powerful pumping force.
1000m3/h Cutter Suction Dredger Vessel Specification
Total Length * Width * Height | Customized according to customer requirements |
Main Hull | Customized according to customer requirements |
The Maximum Dredging Depth | Customized according to customer requirements |
Main Engine Brand Name | Cummins/Weichai |
Winch | The big arm winch, travelling winch |
Classification Society Certification
Performance Features
The 1000m3/h Cutter Suction Dredger is equipped with a rotary cutter device installed at the front end of the suction pipe. This device effectively cuts and agitates the sediment at the river bottom. The loosened material is then suctioned through the mud pipe using a powerful pumping force.
1000m3/h Cutter Suction Dredger Details
- Dredging Process: The cutter suction dredger utilizes a rotating cutterhead positioned at the front end of the suction pipe. The cutterhead is equipped with sharp blades that cut through the sediment, such as sand, mud, or clay, at the river or seabed. The rotation of the cutterhead helps to loosen and agitate the sediment.
- Suction and Pumping: Once the sediment is agitated, the powerful suction force created by the dredger’s pumps draws the mixture of water and sediment into the suction pipe.
- Mud Transportation: The slurry is pumped through the mud pipe, which is typically floating on the water’s surface or secured to the dredger. The mud pipe is designed to transport the slurry to the designated location, such as a sediment accumulation site or a designated disposal area.
1000m3/h Cutter Suction Dredger Features
Working capacity(mixture) | 1000 m3/h |
Discharging distance | 2000 m |
Power of the diesel engine | 375 KW |
The big arm winch | 1 Set |
The travelling winch | 2 Sets |
